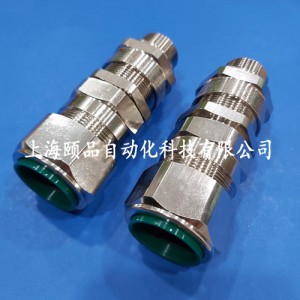

CMP鎧裝防爆格蘭密封接頭（E1FW系列）
點擊圖片查看原圖
品牌： CMP鎧裝防爆格蘭
CMP防爆格蘭： E1FW系列
單價： 198.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-12-16 09:59
瀏覽次數： 551
詢價
店鋪基本資料信息

 產品詳細說明
 英國CMP鎧裝防爆格蘭E1FW系列（CMP cable gland）

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

      E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland

      For all types of Steel & Aluminium Wire Armoured Cables



CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

Internationally Approved, Explosive Atmosphere Cable Gland

• metal-to-metal armour clamping

• Direct & remote installation

• Displacement type flameproof inner seal

• Controlled outer ‘load retention’ seal

• Unique OSTG prevents overtightening

• Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)

• -60°C to +130°C

• Class I Zone 1, 21 ａnd Zone 2, 22 Class I Division 2 ABCD

• Globally marked, IECEx, ATEX & cCSAus

• Superior EMC performance



Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).



Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below.



CERTIFICATES



PRODUCT SELECTION TABLE

CLICK HERE TO VIEW HOW TO ORDER

Cable Gland Size Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) Cable
Bedding
Diameter
＇A＇		 Overall
Cable
Diameter
＇B＇		 Armour Range †
Grooved Cone (X)		 Across
Flats
＇D＇		 Across
Corners
＇D＇		 Protrusion
Length ＇F＇		 Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) ＇E＇ NPT Thread Length
(NPT) ＇E＇		 NPT Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½＇ 19.9 ¾" 3.1 8.6 6.1 13.1 0.3 1.0 24.0 26.4 72.5 20S16 E1FW 1RA PVC04 0.16
20S M20 15.0 ½＇ 19.9 ¾" 6.1 11.6 9.5 15.9 0.3 1.0 24.0 26.4 70.0 20S E1FW 1RA PVC04 0.15
20 M20 15.0 ½＇ 19.9 ¾" 6.5 13.9 12.5 20.9 0.4 1.0 30.5 33.6 73.0 20 E1FW 1RA PVC06 0.21
25S M25 15.0 ¾＇ 20.2 1" 11.1 19.9 14.0 22.0 0.4 1.2 37.5 41.3 89.0 25S E1FW 1RA PVC09 0.33
25 M25 15.0 ¾＇ 20.2 1" 11.1 19.9 18.2 26.2 0.4 1.2 37.5 41.3 89.0 25 E1FW 1RA PVC09 0.33
32 M32 15.0 1＇ 25.0 1 ¼" 17.0 26.2 23.7 33.9 0.4 1.2 46.0 50.6 86.0 32 E1FW 1RA PVC11 0.43
40 M40 15.0 1 ¼＇ 25.6 1 ½" 22.0 32.1 27.9 40.4 0.4 1.6 55.0 60.5 90.0 40 E1FW 1RA PVC15 0.62
50S M50 15.0 1 ½＇ 26.1 2" 29.5 38.1 35.2 46.7 0.4 1.6 60.0 66.0 91.0 50S E1FW 1RA PVC18 0.75
50 M50 15.0 2＇ 26.9 2 ½" 35.6 44.0 40.4 53.0 0.6 1.6 70.1 77.1 95.0 50 E1FW 1RA PVC21 0.95
63S M63 15.0 2＇ 26.9 2 ½" 40.1 49.9 45.6 59.4 0.6 1.6 75.0 82.5 102.0 63S E1FW 1RA PVC23 1.34
63 M63 15.0 2 ½＇ 39.9 3" 47.2 55.9 54.6 65.8 0.6 1.6 80.0 88.0 104.0 63 E1FW 1RA PVC25 1.34
75S M75 15.0 2 ½＇ 39.9 3" 52.8 61.9 59.0 72.0 0.6 1.6 90.0 99.0 115.0 75S E1FW 1RA PVC28 2.11
75 M75 15.0 3＇ 41.5 3 ½" 59.1 67.9 66.7 78.4 0.6 1.6 100.0 110.0 117.0 75 E1FW 1RA PVC30 2.42
90 M90 24.0 3 ½＇ 42.8 4" 66.6 78.6 76.2 90.3 0.8 1.6 114.3 125.4 147.0 90 E1FW 1RA PVC32 4.21
100 M100 24.0 3 ½＇ 42.8 4" 76.0 90.9 86.1 101.4 0.8 1.6 123.0 135.3 140.0 100 E1FW 1RA LSF33 4.45
115 M115 24.0 4" 44.0 5" 86.0 97.9 101.5 110.2 0.8 1.6 133.4 146.7 162.0 115 E1FW 1RA LSF34 6.19
130 M130 24.0 5" 46.8 - 97.0 114.9 110.2 123.2 0.8 1.6 152.4 167.6 174.0 130 E1FW 1RA LSF35 8.34
Dimensions displayed in millimeters unless otherwise stated

TECHNICAL ILLUSTRATION

CMP防爆格蘭（CMP Cable Gland）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
