Eaton庫柏Cooper接管式非鎧防爆格蘭(ADCS系列)

點擊圖片查看原圖
品牌: Eaton庫柏Cooper接管式非鎧防爆格蘭
cooper防爆格蘭: ADCS系列
單價: 498.60元/只
所在地: 上海
有效期至: 長期有效
最后更新: 2024-12-16 09:59
瀏覽次數: 405
詢價
店鋪基本資料信息

產品詳細說明


Eaton庫柏Cooper接管式非鎧防爆格蘭(ADCS系列

Eaton庫柏Cooper接管式非鎧防爆格蘭(ADCS系列

Eaton/Cooper/Capri/Raxton/Redapt/CEAG cable glands
Eaton代理商:上海頤品自動化科技有限公司

關鍵詞:Eaton防爆戈蘭,Cooper防爆葛蘭,Capri防爆格蘭
Raxton防爆連接件,Redapt防爆變徑,防爆呼吸閥等

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

關鍵詞:Eaton防爆格蘭,Cooper防爆格蘭,庫柏防爆格蘭,Cooper防爆箱

Capri防爆格蘭,Raxton防爆變徑,Redapt防爆變徑堵頭,Raxton防爆呼吸閥

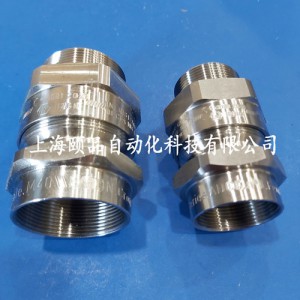

Eaton-Capri庫柏非鎧接管式防爆格蘭ADCS系列
Eaton庫柏代理商:上海頤品自動化科技有限公司

Applications:
ADE conduit glands enable direct connection to rigid or flexible conduit while allowing cable to pass through the gland. This allows the cable to have extra protection, especially in extreme environments. They are available in nickel-plated brass or stainless steel to give increased corrosion resistance.
Key features & benefits:
• Nickel-plated brass for superior corrosion resistance. 316L stainless steel option available.
It is recommended that a suitable lubricant is used on all threads of stainless steel versions.
• Best solution for extreme temperatures: -60°C to +140°C
• Maintains Ex-d and Ex-e protection
• Removable silicone dust cover protects from ingress before cable assembly
• Full coverage of all sizes M20 to M110 and 1/2" - 4" NPT
• Multiple female thread options (ISO, NPT, BSPP), enabling interface to different conduit sizes
• ADCC has a compact design with 20% weight saving compared to competitors
• IP66 / IP68 according to the method of attachment and the condition of the equipment area


ADCS conduit glands




Capri ADCS & ADCC - Cable glands for flexible & rigid conduits

The ADCC and ADCS is a widely approved cable gland for use connecting a cable and conduit system.
With a range of materials and male and female thread options to cover all requirements.

The ADCC is a fixed connection the ADCS incorporates a swivel design to allow for use with long rigid
conduit runs. Should be used in conjunction with appropriate termination for flexible conduits.

Available as gland only or in pre-packed kit form for ease of ordering. Refer to our ADE Gland Accessories for further matching accessories.

PROTECTION TYPE
Flameproof Ex db, Increased Safety Ex eb,
Restricted Breathing Ex nR, Dust Ex tb
AREA CLASSIFICATION
Zones 1 and 2, Groups I, IIA, IIB and IIC Zones 21 and 22,
Groups IIIA, IIIB and IIIC


Cable types
Non-armored cable
Cable with insulated conductors, with no layer of mechanical (metallic) protection.
Marine shipboard cable
Non-armored cable designed specially for marine applications.
Tray cable
Tray cable designed for industrial high power applications.
Type P cable
Rugged non-armored cable designed specially for oil and gas drilling applications.

Protection category

ATEX
Approved in accordance to EU directives for explosive atmospheres
IECEx
Approved in accordance to international IEC standards for equipment in explosive atmospheres

Other certificates: Inmetro, CCoE, EAC, KOSHA, & NEPSI.

Shipping applications: ABS, DNV, BV & Lloyds.


ADCC: threaded junction for rigid or flexible conduit
Provide female thread for conduit connection which includes a non-armoured cable run.

ADCS: swivel connection to rigid conduit

Provide female thread for rigid conduit connection and independent unio for installation ease. Multiple female thread options available for rigid conduit.


Designed and certified for use in the most severe environments

The Capri ADCC and ADCS are the best solutions for extreme operating temperatures from -60°C to +140°C. The seal material on Eaton's Capri series of cable glands has been carefully formulated to achieve optimal performance. Rated to IP66 and IP68 the Capri ADCC and ADCS are dust-tight and can withstand being completely submerged in water continuously.






Eaton/Cooper/Capri/Raxton/Redpt防爆格蘭,防爆變徑等,防爆呼吸閥等

Hazardous Area Cable Glands-ATEX IECEX,Exe,Exd Group II

Capri防爆格蘭代理商:上海頤品自動化科技有限公司

Eaton/Cooper/Capri/Raxton/Redpt防爆格蘭,防爆變徑等,防爆呼吸閥等

關鍵詞:Cooper防爆格蘭,CCG防爆變徑,Hawke防爆堵頭,Peppers防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司
